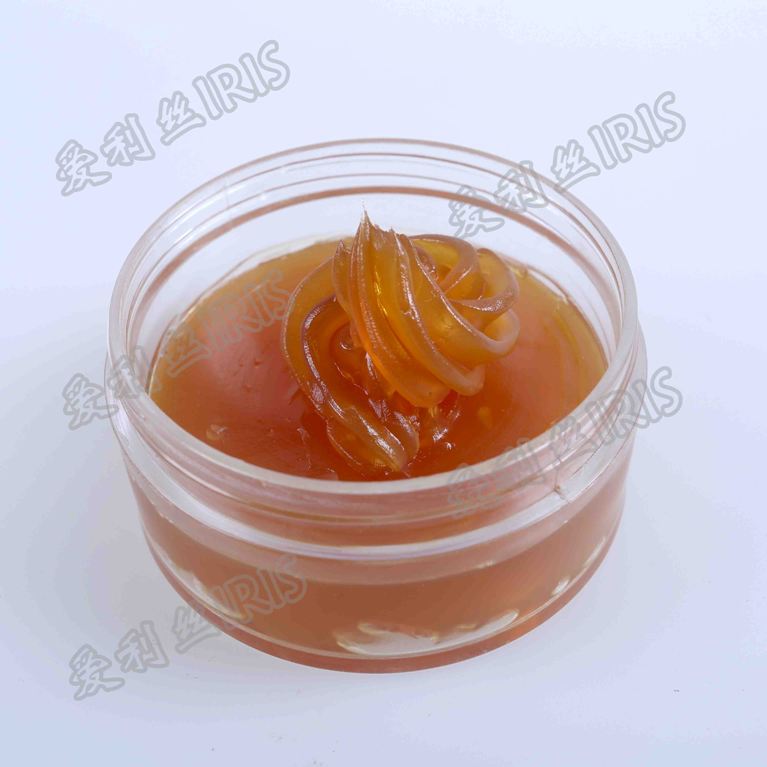

【Product introduction】IRIS-160 is made of high performance thickener, refined mineral oil with kinds of addictive agents. This product not only owes excellent lubricity, but also shares great rust resistance, waterproof and wide temperature range applicability. IRIS-160 meets standard PD IEC61394:1998 and standard BS EN 50326:2002
【Product application】Rust protection and lubricate of ACSR, cable, electric cable.
【The characteristics of the products】This product has good antirust properties, lubricity, extreme pressure anti-wear performance, and compatibility with steel, aluminum, copper and plastic pipe. No emulsification, no flow, no bubbles when extruded at high temperature. Coating performance is good when used at low temperature. This product is only suitable for cold painted.
【Quality index】
|
Test Item
|
Test Standard
|
Main Index
|
|
IRIS-160
|
IRIS-160A
|
IRIS-160H
|
|
Appearance
|
sight
|
Light yellow
|
Yellow
|
Green/
Yellow
|
|
Drop point(℃)
|
ISO 2176
|
≥200
|
≥160
|
≥260
|
|
Penetration(25℃,1/10mm)
|
ISO 2137
|
220～250
|
≥280
|
305～325
|
|
Evaporation Loss
|
ASTM D 972
|
≤2
|
≤2
|
≤2
|
|
Oil separation(100℃,24h),%
|
ASTM D 1742
|
≤5
|
≤8
|
≤5
|
|
Corrosion test
|
ISO 7120
|
1a
|
1a
|
1a
|
|
Low adhesion
|
IEC 61394
|
≤-30
|
≤-20
|
≤-20
|
|
Acid(mg,KOH/g)
|
ISO 6618
|
＜1.0
|
＜1.0
|
＜1.2
|
【Package and transportation】
This product is packaged with a 200-liter drum; load lightly; placed and stored in a cool, fire treasury.
